Firebox: This is the open mouth area of the hearth that you put the logs and have the fire. Flue Tile: This is the area of the chimney where the walls are parallel and the chimney makes a long run to the chimney top. It is often lined with a clay flue tile, or a metal flue liner. Sometimes it is just bare brick. fresh air intake part of a.. The hearth is the center of your fireplace. It provides a place to put logs, kindling, and coal. The hearth should be at least 4″ from the wall, and it should be at least 18″ from any adjacent wall to prevent heat loss. You can also use an ash pan on top of your hearth if you want to get rid of ash quickly. 5.

Fireplace Drawing at GetDrawings Free download

Pin by Christopher Gerdes on BDCS Masonry fireplace, Fireplace parts, Masonry

Gas Fireplace Insert Parts Reviewmotors.co

01.160.0101 Fireplace Detail International Masonry Institute

Heat & Glo 6000XLS 36" DV Gas Fireplace Parts

Is a Masonry Fireplace Right for Your Home? HomeTips

Wood Burning Fireplaces Bromwell's

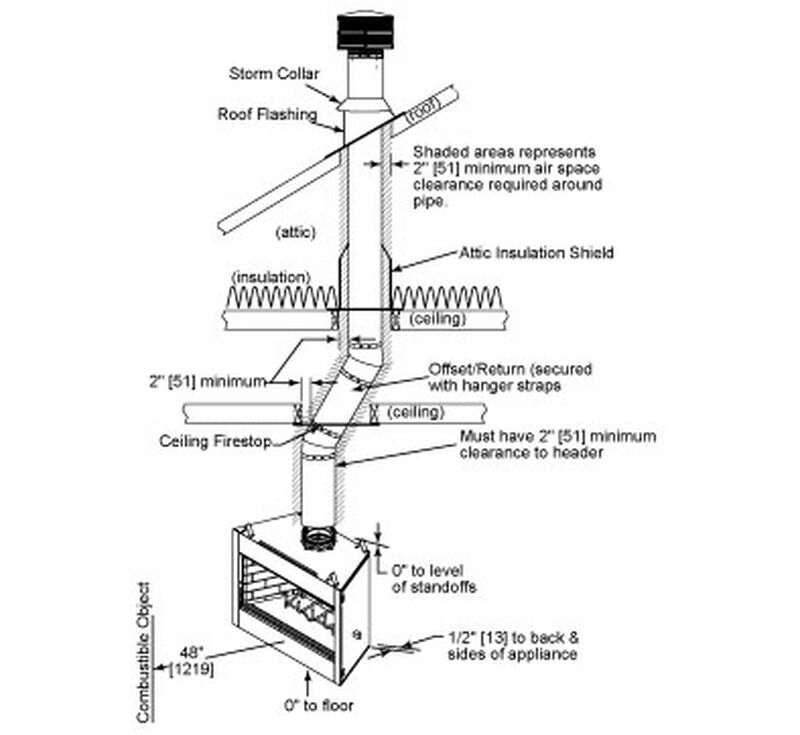

Wood Burning Fireplace Diagram Fireplace World
